Description

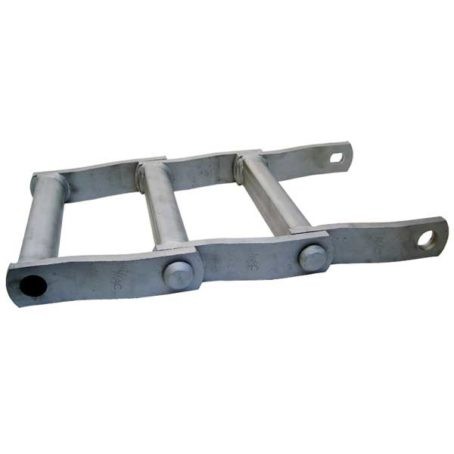

Welded steel drag chains are designed for drag conveyors where are ugged and demanding environments exist.Commonly used for forestry applications in rough and abrasive environments. To provide greater fatigue life this series of chain is made with special heat treated and induction hardened pins.
WELDED STEEL DRAG CHAIN OPTIONS
WD - Standard welded steel drag chain with heat-treated pins
WDH - Welded steel drag chain with heat-treated pins, barrels, and side-bars
WDH---XHD - Extra Heavy Duty Welded steel drag chain with heat-treated pins, barrels, and side-bars.
SS - Stainless Steel Welded Steel Drag Chain
WELDED STEEL DRAG CHAIN SIZES
Pitch (A)
(B)
(C)
(D)
(E)
(F)
(G)
Weight Per Ft
5.00"
1-1/2"
3/8"
3/4"
9-1/4"
7-3/4"
6-3/8"
12.0 LBS
5.00"
1-1/2"
3/8"
3/4"
9-1/4"
7-3/4"
6-3/8"
12.0 LBS
6.00"
1-1/2"
3/8"
3/4"
6-3/4"
5-3/8"
4-1/8"
8.6 LBS
6.00"
1-1/2"
3/8"
3/4"
6-3/4"
5-3/8"
4-1/8"
8.6 LBS
6.00"
1-1/2"
3/8"
3/8"
11-3/4"
10-1/4"
9.00"
12.0 LBS
6.00"
1-1/2"
3/8"
3/8"
11-3/4"
10-1/4"
9.00"
12.0 LBS
8.00"
1-1/2"
3/8"
3/4"
11-3/4"
10-1/4"
9.00"
10.0 LBS
8.00"
1-1/2"
3/8"
3/4"
11-3/4"
10-1/4"
9.00"
10.0 LBS
8.00"
1-3/4"
3/8"
3/4"
15-1/2"
14-1/8"
13.00"
12.9 LBS
8.00"
1-3/4"
3/8"
3/4"
15-1/2"
14-1/8"
13.00"
12.9 LBS
8.00"
2.00"
1/2"
7/8"
16-5/8"
14-7/8"
13-1/4"
18.0 LBS
8.00"
2.00"
1/2"
7/8"
16-5/8"
14-7/8"
13-1/4"
18.0 LBS
8.00"
2.00"
5/8"
1.00"
17-3/8"
15-1/8"
13-1/4"
21.0 LBS
6.00"
2.00"
1/2"
7/8"
12.0"
10-1/4"
8-3/4"
18.0 LBS
6.00"
2.00"
1/2"
7/8"
12.0"
10-1/4"
8-3/4"
18.0 LBS
6.00"
2.00"
5/8"
1.00"
12-3/4"
10-1/2"
8-3/4"
21.0 LBS
8.00"
2.00"
1/2"
7/8"
12.0"
10-1/4"
8-3/4"
15.0 LBS
8.00"
2.00"
1/2"
7/8"
12.0"
10-1/4"
8-3/4"
15.0 LBS
8.00"
2.00"
5/8"
1.00"
12-3/4"
10-1/2"
8-3/4"
17.60 LBS
8.00"
2.00"
1/2"
7/8"
14-1/2"
12-3/4"
11.00"
16.90 LBS
8.00"
2.00"
1/2"
7/8"
14-1/2"
12-3/4"
11.00"
16.90 LBS
8.00"
2.00"
5/8"
1.00"
15-1/4"
13.00"
11.00"
19.50 LBS
8.00"
2.00"
0.50"
1.00"
14.63"
12.10"
11.20"
19.40 LBS
8.00"
2.00"
0.50"
1.00"
14.63"
12.10"
11.20"
19.40 LBS
8.00"
2.00"
0.63"
1.00"
15.33"
13.00"
11.20"
21.00 LBS
8.00"
2.00"
0.63"
1.00"
15.33"
13.00"
11.20"
21.00 LBS
